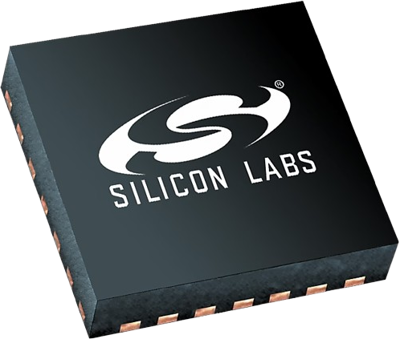

C8051F321-GMR | Silicon Laboratories
8051 microcontroller, 8 bit, 25 MHz, VFQFN-28, C8051F321-GMR
Unit Price (€ / pc.)
12.3284 € *
Standard delivery time from the manufacturer is: 16 Weeks
Microcontroller, C8051F321-GMR, Silicon Laboratories
The C8051F321-GMR microcontroller (MCU) features an on-board universal serial bus (USB) 2.0 function controller with an integrated transceiver and on-chip clock recovery. No external resistors, crystal, voltage regulator, EEPROM, or other components are required for USB applications.
Features
- Four general purpose 16-bit counter/timers
- Built-in Temperature Sensor
- External conversion start input
- Real time clock mode using external clock source and PCA or timer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flash | |
| Clock frequency | 25 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Core Size | 8 bit | |
| Number of pins | 28 | |
| Number of I/Os | 21 | |
| Data RAM Size | 2.25 KB | |
| Enclosure | VFQFN-28 | |
| Processor core | 8051 | |
| Memory size | 16 KB | |
| Voltage | 2.7-3.6 V | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,500 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423190 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
