C8051F005-GQR | Silicon Laboratories

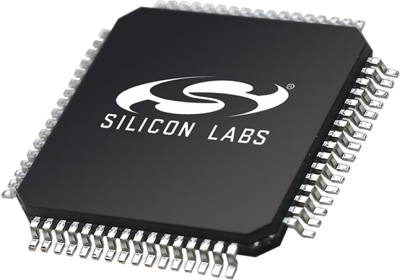

8051 microcontroller, 8 bit, 25 MHz, TQFP-64, C8051F005-GQR
Unit Price (€ / pc.)
29.2026 € *
Standard delivery time from the manufacturer is: 12 Weeks
Microcontroller, C8051F005-GQR, Silicon Laboratories
The C8051F005-GQR is a highly integrated mixed-signal 8-bit microcontroller (MCU) featuring a powerful 8051 core. This product is a truly stand-alone system-on-chip solution, making it ideal for applications such as portable medical equipment, weigh scales, test equipment, and fiber optic systems among others.
Features
- Programmable Hysteresis Values
- Provides Breakpoints, Single Stepping, Watchpoints, Stack Monitor
- Four General Purpose 16-bit Counter/Timers
- Can Switch Between Clock Sources on-the-fly; Useful in Power Saving Modes
- Dedicated watch-dog timer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flash | |
| Clock frequency | 25 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Core Size | 8 bit | |
| Number of pins | 64 | |
| Number of I/Os | 32 | |
| Data RAM Size | 2.25 KB | |
| Enclosure | TQFP-64 | |
| Processor core | 8051 | |
| Memory size | 32 KB | |
| Voltage | 2.7-3.6 V | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85423190 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
