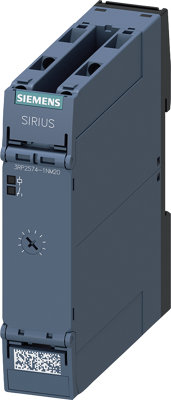

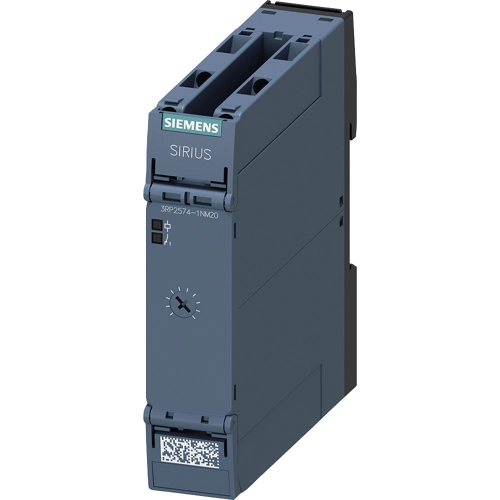

3RP2574-1NM20 | Siemens
Time relay, 1 to 20 s, star-triangle function, 2 Form A (N/O), 200-240 V AC, 3 A/250 VAC, 3RP2574-1NM20
Order No.: 27H8746
EAN: 4011209944374
MPN:
3RP2574-1NM20
3RP25741NM20
Unit Price (€ / pc.)
103.8751 € *
Standard delivery time from the manufacturer is: 1 Week
Timing relay, electronic with star-delta (wye-delta) function 1 NO delayed 1 NO instantaneous 1 time range, 1...20 s 200-240 V AC and 380-440 V AC screw terminal timing relay SIRIUS 3RP25, Star-delta (wye-delta) function, for the targeted startup of motors in star-delta (wye-delta) circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Time display | 1 to 20 s | |
| Function | star-triangle function | |
| Contact type | 2 Form A (N/O) | |
| Voltage | 200-240 V AC | |
| Breaking capacity | 3 A/250 VAC | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
