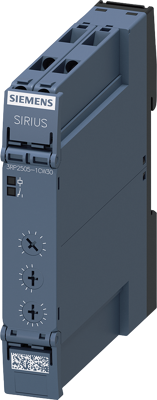

3RP2505-1CW30 | Siemens
Multifunction relay, 0.05 s to 100 h, 13 functions, 1 Form A (N/O), 12-240 V AC/DC, 1 A/250 V AC/DC, 3RP2505-1CW30
Order No.: 27H8706
EAN: 4011209943919
MPN:
3RP2505-1CW30
3RP25051CW30
Unit Price (€ / pc.)
141.6338 € *
Standard delivery time from the manufacturer is: 1 Week
Timing relay, Multifunction 1 NO semiconductor 13 functions 7 time ranges (0.05 s...100 h) 12-240 V AC/DC at 50/60 Hz AC with LED, Screw terminal timing relay SIRIUS 3RP25, 13 functions, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Time display | 0.05 s to 100 h | |
| Function | 13 functions | |
| Contact type | 1 Form A (N/O) | |
| Voltage | 12-240 V AC/DC | |
| Breaking capacity | 1 A/250 V AC/DC | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| RoHS conform | Yes |
