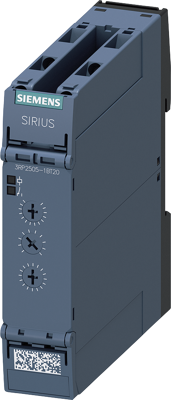

3RP2505-1BT20 | Siemens
Multifunction relay, 0.05 s to 100 h, 27 functions, 2 Form C (NO/NC), 400-440 VAC, 3 A/250 VAC, 3RP2505-1BT20
Order No.: 27H8704
EAN: 4011209944350
MPN:
3RP2505-1BT20
3RP25051BT20
Unit Price (€ / pc.)
155.3902 € *
Standard delivery time from the manufacturer is: 1 Week
Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 400-440 V AC at 50/60 Hz AC with LED, Screw terminal timing relay SIRIUS 3RP25, 27 functions, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Time display | 0.05 s to 100 h | |
| Function | 27 functions | |
| Contact type | 2 Form C (NO/NC) | |
| Voltage | 400-440 VAC | |
| Breaking capacity | 3 A/250 VAC | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| RoHS conform | Yes |
