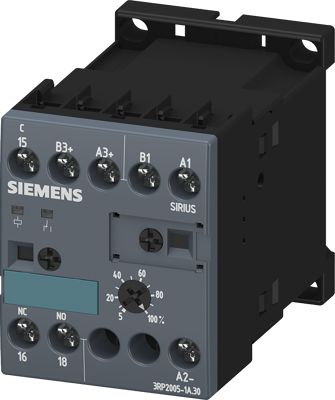

3RP2005-1AP30 | Siemens
Multifunction relay, 0.05 to 100 s, 8 functions, 1 Form C (NO/NC), 24 V AC/DC, 3 A/250 VAC, 3RP2005-1AP30
Order No.: 27H8690
EAN: 4011209569430
MPN:
3RP2005-1AP30
3RP20051AP30
Unit Price (€ / pc.)
132.4232 € *
Standard delivery time from the manufacturer is: 1 Week
Timing relay, electronic Multifunction, 8 functions 1 change-over contact 24 V AC/DC, 200 to 240 V AC at 50/60 Hz AC 0.05 s to 100 h Overall width 45 mm screw terminal timing relay SIRIUS 3RP20, Multifunctional, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Technical specifications
| Time display | 0.05 to 100 s | |
| Function | 8 functions | |
| Contact type | 1 Form C (NO/NC) | |
| Voltage | 24 V AC/DC | |
| Breaking capacity | 3 A/250 VAC | |
| Connection | screw connection |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | lead monoxide, lead titanium zirconium oxide, lead |
| SVHC free | No |
| RoHS conform | Yes |
