3RA2832-1DH10 | Siemens

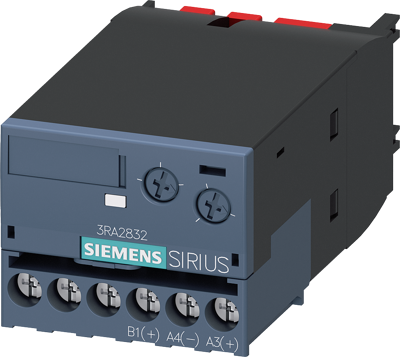

Time relay, 0.05 to 100 s, delayed switch-off, 1 Form A (N/O), 90-240 V AC/DC, 3RA2832-1DH10
Order No.: 27H8465
EAN: 4011209974180
MPN:
3RA2832-1DH10
3RA28321DH10
Unit Price (€ / pc.)
97.6633 € *
Standard delivery time from the manufacturer is: 1 Week
Dlectronic timing relay, off delayed, with control signal and semiconductor output, time range 0.05-100 s, 90-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, screw terminal, can be snapped on at the front on contactors 3RT2.3 / 3RT2.4 function module SIRIUS 3RA28 for direct-on-line starting for mounting on 3RT2 contactors and 3RH2 contactor relays for switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup or fan running-on control.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Function | delayed switch-off | |
| Connection | screw connection | |
| Contact type | 1 Form A (N/O) | |
| Voltage | 90-240 V AC/DC | |
| Time display | 0.05 to 100 s |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, lead monoxide (lead oxide) |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
