3SE5000-0AT10 | Siemens

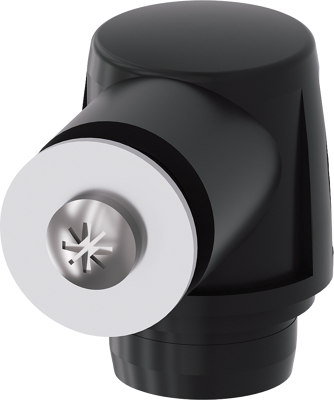

Drive head, right/left switching, (L x H) 43.6 x 24 mm, for 3SE5112/3SE5122/3SE5162, 3SE5000-0AT10
Order No.: 80P9003
EAN: 4011209696082
MPN:
3SE5000-0AT10
3SE50000AT10
Unit Price (€ / pc.)
50.6583 € *
Standard delivery time from the manufacturer is: 1 Week
Part-turn actuator (without lever), right or left switching, adjustable, for fork lever with two rollers for metal enclosure 3SE5112/3SE5122/3SE5162, only for snap-action contacts actuator head for position switch SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|

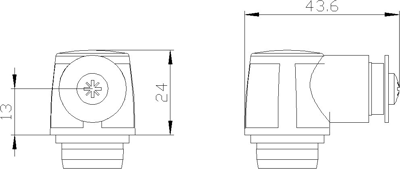

| Length | 43.6 mm | |
| Height | 24 mm | |
| Version | right/left switching | |
| Product type | drive head | |
| Suitable for | 3SE5112/3SE5122/3SE5162 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
