3SE5000-0AR04 | Siemens

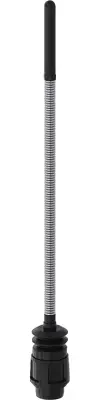

Drive head, spring rod, Ø 6 mm, (L) 242.5 mm, for series 3SE51/52, 3SE5000-0AR04
Order No.: 80P7335
EAN: 4011209696075
MPN:
3SE5000-0AR04
3SE50000AR04
Unit Price (€ / pc.)
31.9872 € *
Standard delivery time from the manufacturer is: 1 Week
Actuator head: spring rod for position switches 3SE51/52 only with snap-action contacts, total length 242.5 mm, Plunger = 150 mm, Plunger = 50 mm, made of plastic actuator head for position switch SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 6 mm | |
| Length | 242.5 mm | |
| Suitable for | series 3SE51/52 | |
| Product type | drive head | |
| Version | spring rod |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
