3KC9000-8TL50 | Siemens

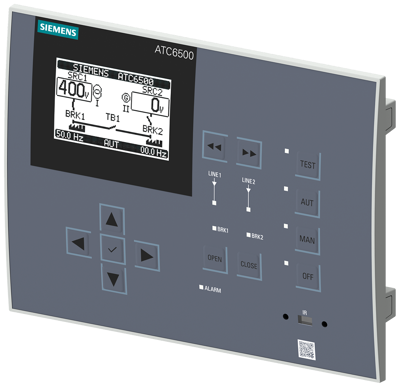

Mains switching control unit, LCD, (W x H) 240 x 180 mm, for MCCB, ACB mains changeover unit, 3KC9000-8TL50
Unit Price (€ / pc.)
2,646.1435 € *
Standard delivery time from the manufacturer is: 5 Weeks
3KC90008TL50, Siemens
SENTRON 3KC ATC6500: LCD- 180X240 mm- transfer control device for controlling MCCB, ACB- for load transfer betreen main and auxillary network- additionally controlling of a tie breaker possible- panel mounting device Un: 100-240 VAC 50/60HZ 110-250VDC- Un: 12-48 VDC- rated voltage Ue: 100-600VAC 50/60Hz- screw terminal- integrated RS485 interface- expandable by maximum 3 modules .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 180 mm | |
| Width | 240 mm | |
| Suitable for | MCCB, ACB mains changeover unit | |
| Product type | mains switching control unit | |
| Version | LCD |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
