3KC9000-8TL40 | Siemens

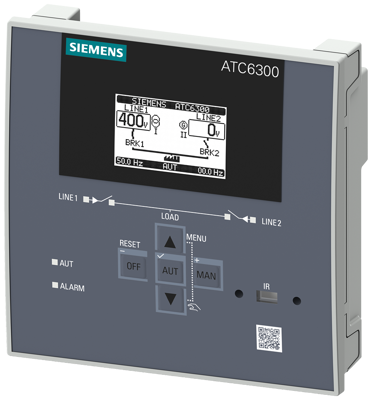

Mains switching control unit, LCD, (W x H) 144 x 144 mm, for MCCB, ACB, LBS mains changeover unit, 3KC9000-8TL40
Unit Price (€ / pc.)
1,512.3591 € *
Standard delivery time from the manufacturer is: 1 Week
3KC90008TL40, Siemens
SENTRON 3KC ATC6300- LCD- 144x144 mm- Transfer control device for control of MCCB, ACB, LBS- for load transfer between main and standby power supply Control panel instrument- Un 100-240 V AC 50/60 Hz, 110-250 V DC- Un 12-24 V DC Rated voltage Ue: 100-480 V AC 50/60 Hz- screw terminal connection Expandable by maximum 2 additional modules .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | mains switching control unit | |
| Width | 144 mm | |
| Suitable for | MCCB, ACB, LBS mains changeover unit | |
| Height | 144 mm | |
| Version | LCD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85371098 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
