3RF2190-3AA44 | Siemens

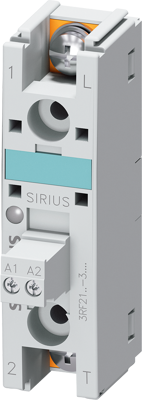

Solid state relay, 4-30 VDC, zero point switching, 48-460 VAC, 90 A, screw mounting, 3RF2190-3AA44
Order No.: 27H8643
EAN: 4011209632752
MPN:
3RF2190-3AA44
3RF21903AA44
Unit Price (€ / pc.)
82.1814 € *
Standard delivery time from the manufacturer is: 1 Week
Semiconductor relay, 1-phase 3RF2 Overall width 22.5 mm, 90 A 48-460 V / 4-30 V DC Ring cable connection solid-state relay SIRIUS 3RF21 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage | 48-460 VAC | |
| Control Voltage | 4-30 VDC | |
| Assembly | screw mounting | |
| Switching Mode | zero point switching | |
| Rated current | 90 A | |
| Voltage V RRM (peak reverse voltage) | 1200 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, lead monoxide (lead oxide) |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
