3RF2190-2AA06 | Siemens

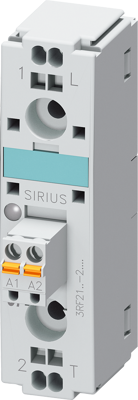

Solid state relay, 15-24 VDC, zero point switching, 48-600 VAC, 90 A, screw mounting, 3RF2190-2AA06
Order No.: 27H8633
EAN: 4011209574175
MPN:
3RF2190-2AA06
3RF21902AA06
Unit Price (€ / pc.)
93.5102 € *
Standard delivery time from the manufacturer is: 1 Week
Semiconductor relay, 1-phase 3RF2 Overall width 22.5 mm, 90 A 48-600 V / 24 V DC Spring-type terminal solid-state relay SIRIUS 3RF21 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Mode | zero point switching | |
| Assembly | screw mounting | |
| Rated current | 90 A | |
| Control Voltage | 15-24 VDC | |
| Voltage | 48-600 VAC | |
| Voltage V RRM (peak reverse voltage) | 1600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| RoHS conform | Yes |
