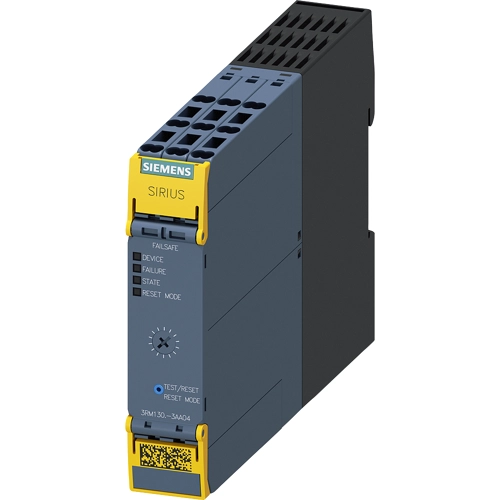

3RM1301-3AA04 | Siemens
Reversing starter, 3 phase, 0.12 kW, 0.5 A, 24 V (DC), 3RM1301-3AA04
Unit Price (€ / pc.)
246.5680 € *
Standard delivery time from the manufacturer is: 1 Week
Failsafe reversing starter, 3RM1, 500 V, 0 - 0.12 kW, 0.1 - 0.5 A, 24 V DC, screw/spring-loaded terminals (push-in) Failsafe reversing starters SIRIUS 3RM1 for functional switching of three-phase motors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 60 °C | |
| Rated current | 0.5 A | |
| min. operating temperature | -25 °C | |
| Number of phases | 3 | |
| Standard number | IEC 60947-4-2 | |
| Power | 0.12 kW | |
| Degree of protection (IP) | IP20 | |
| Version | reversing starter failsafe | |
| Rated voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, lead monoxide (lead oxide) |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
