3RM1207-3AA04 | Siemens

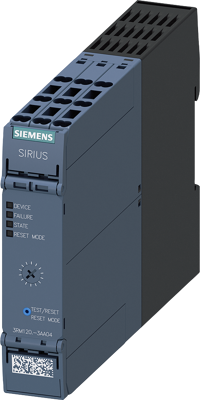

Reversing starter, 3 phase, 3 kW, 7 A, 24 V (DC), 3RM1207-3AA04
Unit Price (€ / pc.)
216.1397 € *
Available: 1 pcs.
reversing starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 24 V DC, screw/spring-loaded terminals (push-in) Reversing starter SIRIUS 3RM1 for functional switching of three-phase motors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Degree of protection (IP) | IP20 | |
| Power | 3 kW | |
| Number of phases | 3 | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -25 °C | |
| Version | reversing starter | |
| Standard number | IEC 60947-4-2 | |
| Rated current | 7 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, lead monoxide (lead oxide) |
| Date of RoHS guidelines | 3/31/15 |
