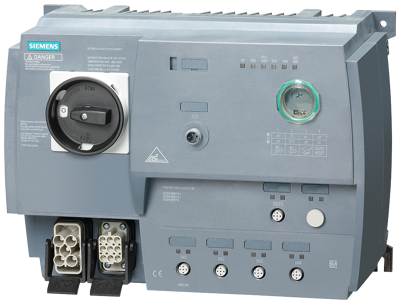

3RK1315-6NS71-0AA0 | Siemens
Motor starter, 2 phase, 4 kW, 9 A, 28.8 V (DC), 3RK1315-6NS71-0AA0
Unit Price (€ / pc.)
835.618 € *
Standard delivery time from the manufacturer is: 3 Weeks
3RK13156NS710AA0, Siemens
SIRIUS motor starter M200D AS-i Communication: AS-Interface DOL starter Basic Electronic switching AC-3, 4 kW / 400 V 1.5 A - 9.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC without brake contact 2DI AS-i + 2DI / 1DO on device Han Q4/2 - Han Q8/0 Motor starters SIRIUS M200D for starting, monitoring and protecting motors and loads for use in the field, for example in conveyor systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | motor starter | |
| Degree of protection (IP) | IP65 | |
| max. operating temperature | 70 °C | |
| Rated voltage (DC) | 28.8 V | |
| Power | 4 kW | |
| Standard number | IEC 61000-4-5 | |
| Number of phases | 2 | |
| min. operating temperature | -40 °C | |
| Rated current | 9 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, lead monoxide (lead oxide) |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
