8WH2000-1JG38 | Siemens

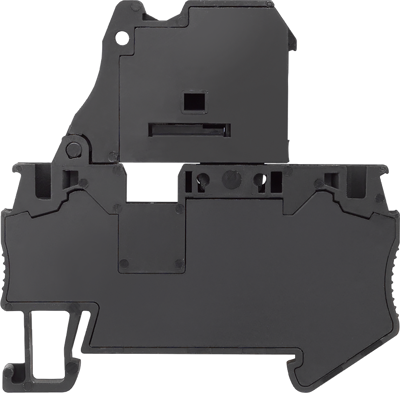

Fuse terminal, spring balancer connection, 0.08-4.0 mm², 6.3 A, black, 8WH2000-1JG38
Order No.: 80P9930
EAN: 4001869347028
MPN:
8WH2000-1JG38
8WH20001JG38
Unit Price (€ / pc.)
17.7667 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.77 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7667 €
50 pcs.
17.4216 €
*incl. VAT plus shipping costs
Subject to prior sale
Terminal, spring-loaded terminal, fuse terminal for G fuse, with LED, 4 mm², black Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system.
Features
- Permanently safe contact
- Easy to disconnect connection of electrical connections such as cables and wires
- Implementation of a large number of applications
- User-friendly and easy installation and connection technology
- Comprehensive and standardized accessories
- Reliable safety during installation with standard touch protection
- Optimized technology for your safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 10 | |
| Colour | black | |
| Connection | spring balancer connection | |
| Rated Voltage | 250 V | |
| Cable cross-section | 0.08-4.0 mm² | |
| Width | 6.15 mm | |
| Height | 63.38 mm | |
| Version | spring terminal block | |
| Length | 61.5 mm | |
| Rated current | 6.3 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
