6ES7148-6JJ00-0BB0 | Siemens
IO-Link + DIQ, PROFINET, 6ES7148-6JJ00-0BB0
Order No.: 70P4528
EAN: 4047623411796
MPN:
6ES7148-6JJ00-0BB0
6ES71486JJ000BB0
Series: SIMATIC ET 200eco
Unit Price (€ / pc.)
599.522 € *
Standard delivery time from the manufacturer is: 5 Weeks
Sensor-actuator distributor,6ES71486JJ000BB0, Siemens

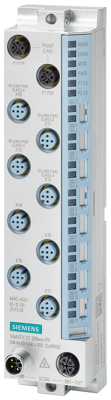

SIMATIC ET 200eco PN, CM 8x IO-Link + DIQ 8x 24 V DC/0.5 A, M12-L, 8x M12, 8x port class A channel diagnostics, shared device, with 2 controllers, prioritized startup, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, EtherNet/IP, Modbus TCP, degree of protection IP67 / IP69K.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bus Input | M12 (5 pole, A coded) | |
| Bus Output | M12 (5 pole, A coded) | |
| Power Input | M12 (4 pole, L coded) | |
| Protocol | PROFINET |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead, lead monoxide (lead oxide), Silicic acid, lead salt |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
