3SE6626-3CA01 | Siemens
Reed switche, magnet, surface mounting, 1 Form A (N/O) + 1 Form B (N/C)//1 Form B (N/C), 10 W, 30 V (DC), 400 mA, 3SE6626-3CA01
Order No.: 80P7932
EAN: 4047621002712
MPN:
3SE6626-3CA01
3SE66263CA01
Unit Price (€ / pc.)
116.6914 € *
Standard delivery time from the manufacturer is: 1 Week

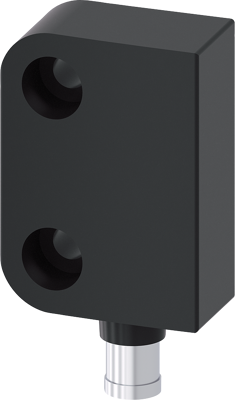

Magnet switch, 3SE6626-3CA01, SIEMENS

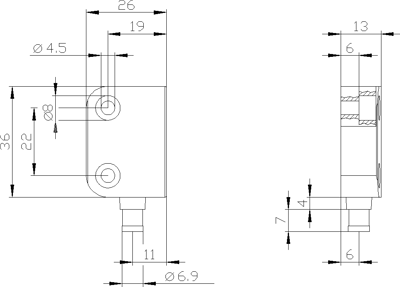

Magnet switch, Switching element, rectangular small 26 x 36 mm, for door hinge on the right, Contact elements: Safety contacts 1 NO+1 NC Signaling contacts 1 NC with 8 mm latching connection Connector 6-pole, without LED the matching solenoid 3SE6714-3CA or offset by 90° 3SE6724-3CA Magnetically operated switch SIRIUS 3SE66 for space-saving and manipulation-proof monitoring of a guard fence, cover or door.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | plug | |
| Detecting distance | 5-15 mm | |
| Version | magnet | |
| Product type | reed switche | |
| Degree of protection (IP) | IP67 | |
| Breaking capacity | 10 W | |
| switching current | 400 mA | |
| Length | 26 mm | |
| Assembly | surface mounting | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C)//1 Form B (N/C) | |
| Switching Voltage (DC) | 30 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead monoxide (lead oxide) |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
