3SE6624-4CA01 | Siemens
Reed switche, magnet, surface mounting, 2 Form B (N/C), 0.24 W, 24 V (DC), 10 mA, 3SE6624-4CA01
Order No.: 80P7931
EAN: 4047621002644
MPN:
3SE6624-4CA01
3SE66244CA01
Unit Price (€ / pc.)
125.7949 € *
Standard delivery time from the manufacturer is: 1 Week

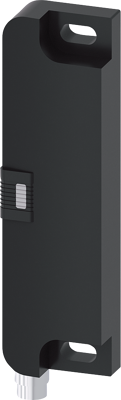

Magnetic switch, 3SE6624-4CA01, SIEMENS

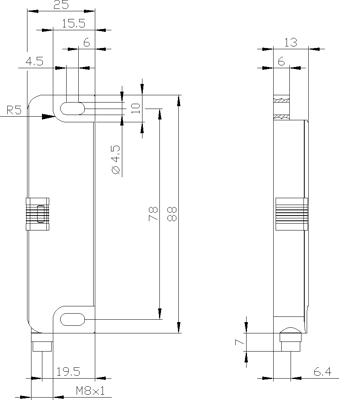

Magnetic switch, Switching element 25 x 88 mm, for door hinge right, switching elements: 2 NC safety contacts, with M8 plug, 4-pin, with screw/latching connection, with LED, the matching switching magnet 3SE6714-2CA or offset by 90° 3SE6724-2CA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | M8-plug | |
| Detecting distance | 7-17 mm | |
| Latching switching function | 2 Form B (N/C) | |
| Switching Voltage (DC) | 24 V | |
| Degree of protection (IP) | IP67 | |
| Length | 88 mm | |
| Assembly | surface mounting | |
| switching current | 10 mA | |
| Breaking capacity | 0.24 W | |
| Version | magnet | |
| Product type | reed switche |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead monoxide (lead oxide) |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
