3SE6617-3CA01 | Siemens

Reed switche, magnet, surface mounting, 2 Form B (N/C) /1 Form B (N/C), 10 W, 30 V (DC), 400 mA, 3SE6617-3CA01

Order No.: 80P7929
EAN: 4047621001470
MPN:
3SE6617-3CA01
3SE66173CA01

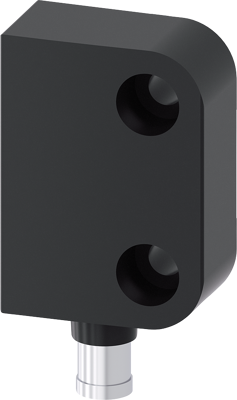

3SE6617-3CA01 Siemens Proximity Switches, Reed switches Image 1

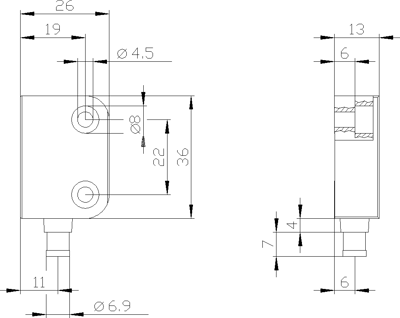

3SE6617-3CA01 Siemens Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
116.6914 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
116.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
116.6914 €

Magnetically-operated switch, 3SE6617-3CA01, SIEMENS

Magnetically-operated switch, contact block, rectangular small 26 x 36 mm, for door hinge left, contacts: safety contacts 2 NC, signaling contact 1 NC (31-32), with 8 mm latching connection connector 6-pole, without LED, the matching solenoid 3SE6714-3CA or offset by 90° 3SE6724-3CA Magnetically operated switch SIRIUS 3SE66 for space-saving and manipulation-proof monitoring of a guard fence, cover or door.

Technical specifications
Filter Property Value
Connection plug
Detecting distance 5-15 mm
Latching switching function 2 Form B (N/C) /1 Form B (N/C)
Switching Voltage (DC) 30 V
Degree of protection (IP) IP67
Length 26 mm
Assembly surface mounting
switching current 400 mA
Breaking capacity 10 W
Version magnet
Product type reed switche
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Substance description Lead monoxide (lead oxide)
SVHC free No
Date of RoHS guidelines 3/31/15
