3SE6617-2CA01 | Siemens

Reed switche, magnet, surface mounting, 2 Form B (N/C) /1 Form B (N/C), 10 W, 30 V (DC), 400 mA, 3SE6617-2CA01

Order No.: 80P7927
EAN: 4047621002620
MPN:
3SE6617-2CA01
3SE66172CA01

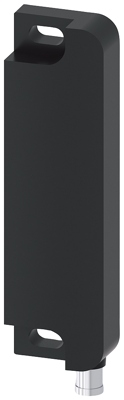

3SE6617-2CA01 Siemens Proximity Switches, Reed switches Image 1
3SE6617-2CA01 Siemens Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
123.3197 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
123.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
123.3197 €

Magnetically-operated switch, 3SE6617-2CA01, SIEMENS

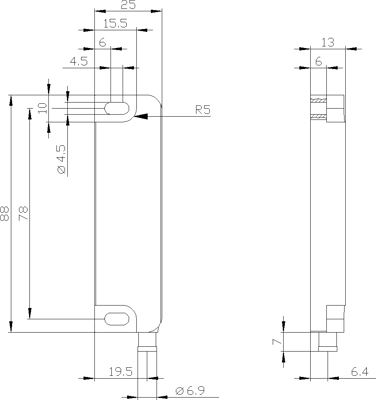

Magnetic switch, Switching element 25 x 88 mm, for door hinge left, switching elements: safety contacts 2 NC, signal contact 1 NC (31-32), with 8 mm latching connection plug 6-pin, without LED, the matching switching magnet 3SE6714-2CA or offset by 90° 3SE6724-2CA

Technical specifications
Detecting distance 7-17 mm
Degree of protection (IP) IP67
Breaking capacity 10 W
Assembly surface mounting
switching current 400 mA
Length 88 mm
Product type reed switche
Version magnet
Switching Voltage (DC) 30 V
Connection plug
Latching switching function 2 Form B (N/C) /1 Form B (N/C)
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
