3SE6614-4CA01 | Siemens
Reed switche, magnet, surface mounting, 2 Form B (N/C), 0.24 W, 24 V (DC), 10 mA, 3SE6614-4CA01
Order No.: 80P7925
EAN: 4047621002613
MPN:
3SE6614-4CA01
3SE66144CA01
Unit Price (€ / pc.)
125.7949 € *
Standard delivery time from the manufacturer is: 1 Week

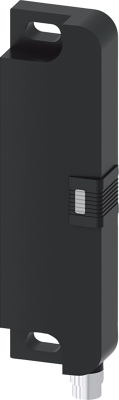

Magnet switch, 3SE6614-4CA01, SIEMENS
Magnet switch, Contact block 25 x 88 mm, for door hinge on the left Contact elements: Safety contacts 2 NC with M8 connector, 4-pole with combi connection Screw/latching connection with LED, the matching solenoid 3SE6714-2CA or offset by 90° 3SE6724-2CA Magnetically operated switch SIRIUS 3SE66 for space-saving and manipulation-proof monitoring of a guard fence, cover or door.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 0.24 W | |
| Detecting distance | 7-17 mm | |
| Latching switching function | 2 Form B (N/C) | |
| Switching Voltage (DC) | 24 V | |
| Length | 88 mm | |
| Degree of protection (IP) | IP67 | |
| Connection | M8-plug | |
| switching current | 10 mA | |
| Product type | reed switche | |
| Assembly | surface mounting | |
| Version | magnet |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead monoxide (lead oxide) |
