3SE6606-2BA04 | Siemens
Reed switche, magnet, surface mounting, 1 Form A (N/O) + 1 Form B (N/C), 3 W, 100 V (DC), 250 mA, 3SE6606-2BA04
Order No.: 80P7924
EAN: 4011209938076
MPN:
3SE6606-2BA04
3SE66062BA04
Unit Price (€ / pc.)
116.6914 € *
Standard delivery time from the manufacturer is: 1 Week

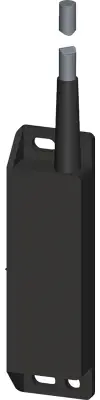

Magnet switch, 3SE6606-2BA04, SIEMENS

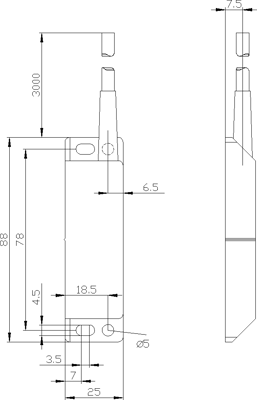

Magnet switch, Contact block 25 x 88 mm 2 NC+1 NO Connecting cable 3 m LIYY, 6 x 0.25 mm² Required solenoid 3SE6704-2BA Magnetically operated switch SIRIUS 3SE66 for space-saving and manipulation-proof monitoring of a guard fence, cover or door.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 100 V | |
| Length | 88 mm | |
| Assembly | surface mounting | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| switching current | 250 mA | |
| Breaking capacity | 3 W | |
| Switching Voltage (AC) | 100 V | |
| Detecting distance | 5-15 mm | |
| Connection | cable, PVC, 3 m | |
| Degree of protection (IP) | IP67 | |
| Product type | reed switche | |
| Version | magnet |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
