3SE6605-3BA | Siemens

Reed switche, magnet, surface mounting, 1 Form A (N/O) + 1 Form B (N/C), 1 W, 24 V (DC), 100 mA, 3SE6605-3BA

Order No.: 80P7923
EAN: 4011209398610
MPN:
3SE6605-3BA
3SE66053BA

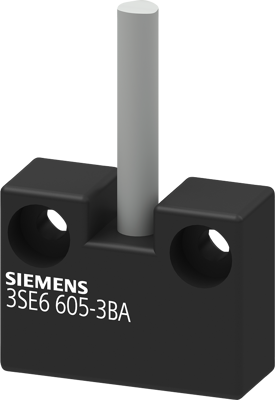

3SE6605-3BA Siemens Proximity Switches, Reed switches Image 1
3SE6605-3BA Siemens Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
80.4321 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
80.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
80.4321 €

Magnet switch, 3SE6605-3BA, SIEMENS

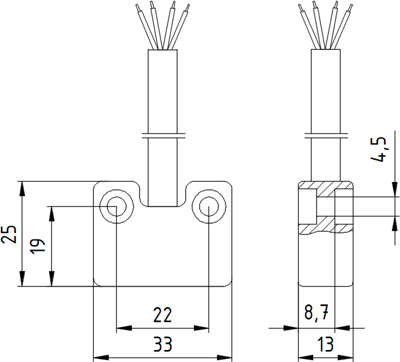

Magnet switch, Switching element, rectangular small 25 x 33 mm Contact elements 1 NC/1 NO with 3 m cable Magnetically operated switch SIRIUS 3SE66 for space-saving and manipulation-proof monitoring of a guard fence, cover or door.

Technical specifications
Filter Property Value
Detecting distance 4-14 mm
Degree of protection (IP) IP67
Breaking capacity 1 W
Assembly surface mounting
switching current 100 mA
Length 33 mm
Product type reed switche
Version magnet
Switching Voltage (DC) 24 V
Connection cable, PVC, 3 m
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead monoxide ]lead(II) oxide]
SVHC free No
RoHS conform Yes
