3SE6604-2BA01 | Siemens
Reed switche, surface mounting, 2 Form B (N/C), 10 W, 60 V (DC), 400 mA, 3SE6604-2BA01
Order No.: 80P7916
EAN: 4011209642751
MPN:
3SE6604-2BA01
3SE66042BA01
Unit Price (€ / pc.)
124.1527 € *
Standard delivery time from the manufacturer is: 1 Week

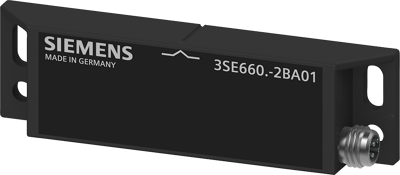

Magnetically-operated switch, 3SE6604-2BA01, SIEMENS
Magnetically-operated switch, contact block, rectangular, large: 25x 88 mm, 2 NC, with M8 plug 4-pole, required solenoid 3SE6704-2BA or with increased switching separation 3SE6701-2BA. accessories: coupling with connecting cable 5 m 3SX5601-3GA05 Magnetically operated switch SIRIUS 3SE66 for space-saving and manipulation-proof monitoring of a guard fence, cover or door.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 60 V | |
| Length | 88 mm | |
| Assembly | surface mounting | |
| Latching switching function | 2 Form B (N/C) | |
| switching current | 400 mA | |
| Breaking capacity | 10 W | |
| Switching Voltage (AC) | 60 V | |
| Detecting distance | 5-15 mm | |
| Connection | M8-plug | |
| Degree of protection (IP) | IP67 | |
| Product type | magnetic switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead monoxide (lead oxide) |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
