4AU3632-8CC40-0HC0 | Siemens

Name: 3 phase transformer, 8000 VA, 500 V/480 V/460 V, 94 %, 4AU3632-8CC40-0HC0
Brand: Siemens
SKU: 80P9655
Availability: InStock

3 phase transformer, 8000 VA, 500 V/480 V/460 V, 94 %, 4AU3632-8CC40-0HC0

Order No.: 80P9655

EAN: 4001869915586

MPN:

4AU3632-8CC40-0HC0

4AU36328CC400HC0

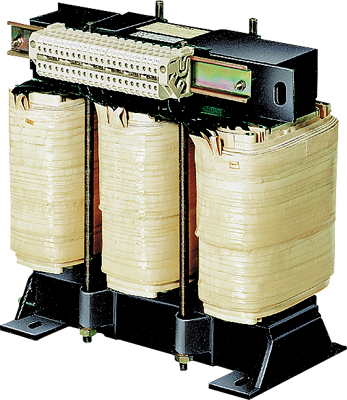

Image may differ

Key Specification:

Output power 8000 W

Primary voltage 520 V

Secondary voltage (1) 500 V

Secondary voltage (2) 480 V

Secondary voltage (3) 460 V

Show variants: 2

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4,752.1341 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

4,752.13 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Transformer Sitas- Phases: 3- PN/PN(S6)(KVA): 8 /39- UPRI(V): Y500-440-380+/-20/D289- 254-220+/-11- USEC(V): Y 400 / D 230- ISEC(A): 11,52-19,9- F(HZ): 50..60- VECTOR GR./Shield WNG.: IIIIII0 /0- TA/ISOKL: 55 /H- IP23- Type Of Terminals: Screw Connection- Installation: Screw- EN 61558-2-1, -2-2, -2-4 UL/CSA-Recognized Control Circuit Transformer, isolation transformer The 4AU 3-phase transformers are implemented as isolating, safety or matching transformers with different primary and secondary voltages and vector groups. They are suitable for a fuseless design due to their low inrush current and this is achieved with SIRIUS 3RV motor starter protectors/circuit breakers.

Technical specifications

Filter	Property	Value
	Output power	8000 W
	Width	460 mm
	Secondary voltage (1)	500 V
	Height	555 mm
	efficiency	94 %
	Primary voltage	520 V
	Secondary voltage (3)	460 V
	Secondary voltage (2)	480 V
	Length	465 mm
