4AU3032-8CC40-0HA0 | Siemens

Name: 3 phase transformer, 6300 VA, 500 V/480 V/460 V, 96 %, 4AU3032-8CC40-0HA0
Brand: Siemens
SKU: 80P9654
Availability: InStock

3 phase transformer, 6300 VA, 500 V/480 V/460 V, 96 %, 4AU3032-8CC40-0HA0

Order No.: 80P9654

EAN: 4001869905914

MPN:

4AU3032-8CC40-0HA0

4AU30328CC400HA0

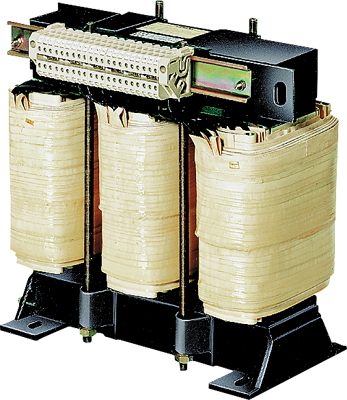

Image may differ

Key Specification:

Output power 6300 W

Primary voltage 520 V

Secondary voltage (1) 500 V

Secondary voltage (2) 480 V

Secondary voltage (3) 460 V

Show variants: 2

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

3,547.3781 € *

Standard delivery time from the manufacturer is: 4 Weeks

Total Price:

3,547.38 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Transformer Sitas- Phases: 3- PN/PN(S6)(KVA): 6,3 /28- UPRI(V): Y500-440-380+/-20/D289- 254-220+/-11- USEC(V): Y 400 / D 230- ISEC(A): 9,1-15,83- F(HZ): 50..60- VECTOR GR./Shield WNG.: IIIIII0 /0- TA/ISOKL: 55 /H- IP00- Type Of Terminals: Screw Connection- Installation: Screw- EN 61558-2-1, -2-2, -2-4 UL/CSA-Recognized Control Circuit Transformer, isolation transformer The 4AU 3-phase transformers are implemented as isolating, safety or matching transformers with different primary and secondary voltages and vector groups. They are suitable for a fuseless design due to their low inrush current and this is achieved with SIRIUS 3RV motor starter protectors/circuit breakers.

Technical specifications

Filter	Property	Value
	Output power	6300 W
	Primary voltage	520 V
	Secondary voltage (1)	500 V
	Secondary voltage (2)	480 V
	Secondary voltage (3)	460 V
	efficiency	96 %
	Length	258 mm
	Width	310 mm
	Height	270 mm
