4AT3612-8DD40-0FA0 | Siemens

Name: Transformer, 5000 VA, 525 V/500 V/480 V, 94 %, 4AT3612-8DD40-0FA0
Brand: Siemens
SKU: 80P9698
Availability: InStock

Transformer, 5000 VA, 525 V/500 V/480 V, 94 %, 4AT3612-8DD40-0FA0

Order No.: 80P9698

EAN: 4001869904863

MPN:

4AT3612-8DD40-0FA0

4AT36128DD400FA0

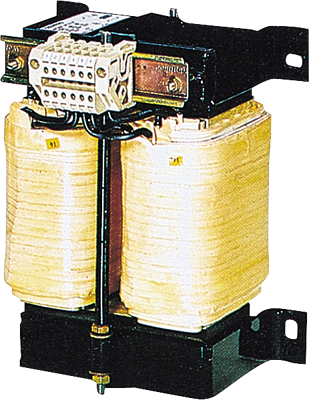

Image may differ

Key Specification:

Output power 5000 W

Primary voltage 550 V

Secondary voltage (1) 525 V

Secondary voltage (2) 500 V

Secondary voltage (3) 480 V

Show variants: 2

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1,950.0173 € *

Standard delivery time from the manufacturer is: 4 Weeks

Total Price:

1,950.02 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Transformer Sitas- Phases: 1- PN/PN(S6)(KVA): 5 /19- UPRI(V): 550-525-500-480-460- 440-415-400-380-230-208- USEC(V): 2X115- ISEC(A): 2X21,7- F(HZ): 50..60- VECTOR GR./Shield WNG.: II0 /0- TA/ISOKL: 55 /H- IP00- Type Of Terminals: Screw Connection- Installation: Screw- EN 61558-2-1, -2-2, -2-4 UL/CSA-Recognized Control Circuit Transformer, isolation transformer The 4AT transformers unite all properties of single-phase safety, isolating, control and line transformers.

Technical specifications

Filter	Property	Value
	Output power	5000 W
	Width	194 mm
	Secondary voltage (1)	525 V
	Height	320 mm
	efficiency	94 %
	Primary voltage	550 V
	Secondary voltage (3)	480 V
	Secondary voltage (2)	500 V
	Length	169 mm
