4AT3612-5CJ10-0FA0 | Siemens

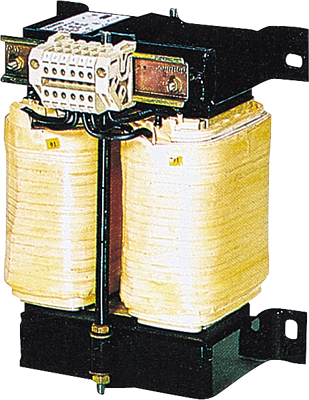

Transformer, 5000 VA, 440 V/418 V, 94 %, 4AT3612-5CJ10-0FA0
Order No.: 80P9650
EAN: 4001869903132
MPN:
4AT3612-5CJ10-0FA0
4AT36125CJ100FA0
Unit Price (€ / pc.)
1,789.3911 € *
Standard delivery time from the manufacturer is: 4 Weeks
Transformer Sitas- Phases: 1- PN/PN(S6)(KVA): 5 /18,5- UPRI(V): 440+/-5%- USEC(V): 110- ISEC(A): 45,5- F(HZ): 50..60- VECTOR GR./Shield WNG.: II0 /0- TA/ISOKL: 55 /H- IP00- Type Of Terminals: Screw Connection- Installation: Screw- EN 61558-2-1, -2-2, -2-4 UL/CSA-Recognized Control Circuit Transformer, isolation transformer The 4AT transformers unite all properties of single-phase safety, isolating, control and line transformers.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output power | 5000 W | |
| Width | 194 mm | |
| Secondary voltage (1) | 440 V | |
| Height | 320 mm | |
| efficiency | 94 % | |
| Primary voltage | 462 V | |
| Secondary voltage (2) | 418 V | |
| Length | 169 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043200 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
