4AP2142-8BC40-0HA0 | Siemens

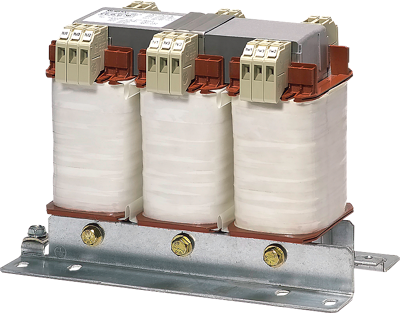

3 phase transformer, 1000 VA, 400 V/289 V/230 V, 92 %, 4AP2142-8BC40-0HA0
Order No.: 80P9644
EAN: 4001869905778
MPN:
4AP2142-8BC40-0HA0
4AP21428BC400HA0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1,041.7498 € *
Standard delivery time from the manufacturer is: 1 Week
Transformer Sitas- Phases: 3- PN/PN(S6)(KVA): 1 /3,5- UPRI(V): Y500-400/D289-230- USEC(V): Y 400 / D 230- ISEC(A): 1,44-2,50- F(HZ): 50..60- VECTOR GR./Shield WNG.: IIIIII0 /0- TA/ISOKL: 40 /B- IP00- Type Of Terminals: screw/tab Connection- Installation: screw- EN 61558-2-1, -2-2, -2-4 UL/CSA-Recognized Control Circuit Transformer, isolation transformer The 4AP 3-phase transformers are implemented as isolating, safety or matching transformers with different primary and secondary voltages and vector groups. They are suitable for a fuseless design due to their low inrush current and this is achieved with SIRIUS 3RV motor starter protectors/circuit breakers.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output power | 1000 W | |
| Primary voltage | 500 V | |
| Secondary voltage (1) | 400 V | |
| Secondary voltage (2) | 289 V | |
| Secondary voltage (3) | 230 V | |
| efficiency | 92 % | |
| Length | 168 mm | |
| Width | 219 mm | |
| Height | 168 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85043200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
