4AM4042-8JN00-0EA0 | Siemens

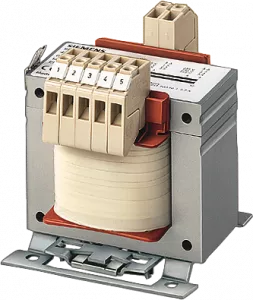

Transformer, 250 VA, 400 V/385 V/245 V, 89 %, 4AM4042-8JN00-0EA0
Order No.: 80P9690
EAN: 4001869902623
MPN:
4AM4042-8JN00-0EA0
4AM40428JN000EA0
Unit Price (€ / pc.)
205.9652 € *
Standard delivery time from the manufacturer is: 1 Week
Transformer Sitas- Phases: 1- PN/PN(S6)(KVA): 0,25 /0,85- UPRI(V): 400-230+/-15- USEC(V): 24- ISEC(A): 10,4- F(HZ): 50..60- VECTOR GR./Shield WNG.: II0 /0- TA/ISOKL: 40 /B- IP00- Type Of Terminals: screw/tab Connection- Installation: screws/mounting rails- EN 61558-2-2, -2-6 UL/CSA-Recognized Control Circuit Transformer, safety isolating transformer. The 4AM transformers unite all properties of single-phase safety, isolating, control and line transformers. With these properties, they can effortlessly handle any application. The control transformers are also characterized by their short-time rating.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output power | 250 W | |
| Primary voltage | 415 V | |
| Secondary voltage (1) | 400 V | |
| Secondary voltage (2) | 385 V | |
| Secondary voltage (3) | 245 V | |
| efficiency | 89 % | |
| Length | 118 mm | |
| Width | 98 mm | |
| Height | 106 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
