4AM3842-5AT10-0FA2 | Siemens

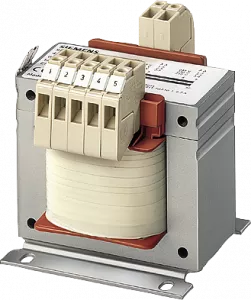

Transformer, 160 VA, 400 V/380 V, 86 %, 4AM3842-5AT10-0FA2

Order No.: 80P9688
EAN: 4019169976695
MPN:
4AM3842-5AT10-0FA2
4AM38425AT100FA2
4AM3842-5AT10-0FA2 Siemens Power Transformers
Image may differ
Unit Price (€ / pc.)
168.2065 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
168.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
168.2065 €

Transformer Sitas- Phases: 1- PN/PN(S6)(KVA): 0,16 /0,49- UPRI(V): 400+/-5%- USEC(V): 230- ISEC(A): 0,696- F(HZ): 50..60- VECTOR GR./Shield WNG.: II0 /0- TA/ISOKL: 40 /B- IP00- Type Of Terminals: screw/tab Connection- Installation: screws/mounting rails- EN 61558-2-2, -2-4, Control Circuit Transformer, - isolation transformer. The 4AM transformers unite all properties of single-phase safety, isolating, control and line transformers. With these properties, they can effortlessly handle any application. The control transformers are also characterized by their short-time rating.

Technical specifications
Filter Property Value
Length 104 mm
Primary voltage 420 V
Secondary voltage (2) 380 V
Height 106 mm
Output power 160 W
efficiency 86 %
Width 98 mm
Secondary voltage (1) 400 V
Logistics
Property Value
Country of origin CZ
Customs tariff number 85043180
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
