3SE5232-0HU21-1AY0 | Siemens

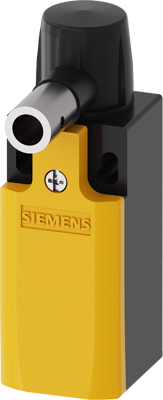

Hinge switch, 2 pole, 1 Form A (N/O) + 1 Form B (N/C), rotary axis, screw connection, IP65, 3SE5232-0HU21-1AY0
Order No.: 80P7725
EAN: 4047621011325
MPN:
3SE5232-0HU21-1AY0
3SE52320HU211AY0
Unit Price (€ / pc.)
70.0196 € *
Standard delivery time from the manufacturer is: 1 Week
Hinge switch Plastic enclosure, 31 mm according to EN 50047 suitable for -40 °C Device connection 1 x (M20 x 1.5) Quick action contacts 1 NC/1 NO integrated, with hollow shaft Diameter = 8 mm Actuating angle 10° Mechanical safety hinge switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment for extreme environmental conditions down to -40 °C, e.g. in wind energy plants, in the food and beverage industry, or for railway applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Pin number | 2 pole | |
| Actuator | rotary axis | |
| Connection | screw connection | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
