3SE5132-0PE05 | Siemens
Position sensor, 3 pole, 2 Form A (N/O) + 1 Form B (N/C), roller lever, screw connection, IP66/IP67, 3SE5132-0PE05
Order No.: 80P7587
EAN: 4011209874558
MPN:
3SE5132-0PE05
3SE51320PE05
Unit Price (€ / pc.)
54.2759 € *
Standard delivery time from the manufacturer is: 1 Week

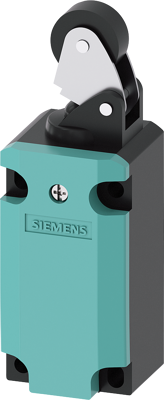

Position switch Plastic enclosure 40 mm according to EN 50041 Device connection 1x (M20 x 1.5) 2 NO/1 NC slow-action contacts Roller lever made of metal and Plastic roller 22 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 2 Form A (N/O) + 1 Form B (N/C) | |
| Pin number | 3 pole | |
| Actuator | roller lever | |
| Connection | screw connection | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
