3SE5132-0LR01 | Siemens

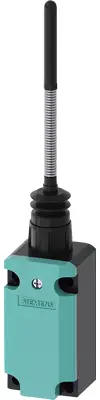

Position sensor, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), spring rod, screw connection, IP65/IP67, 3SE5132-0LR01
Order No.: 80P7579
EAN: 4011209878037
MPN:
3SE5132-0LR01
3SE51320LR01
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
56.882 € *
Standard delivery time from the manufacturer is: 1 Week
Position switch Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts Spring rod actuator 142.5 mm total length with plastic plunger 50 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 2 Form B (N/C) | |
| Pin number | 3 pole | |
| Actuator | spring rod | |
| Connection | screw connection | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
