3SE5122-0QV10-1AA7 | Siemens

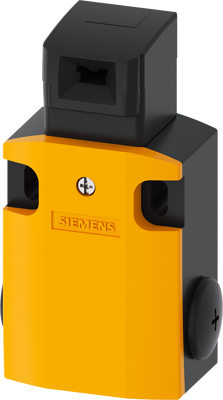

Safety switch, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), screw connection, IP66/IP67, 3SE5122-0QV10-1AA7
Order No.: 80P7530
EAN: 4011209859548
MPN:
3SE5122-0QV10-1AA7
3SE51220QV101AA7
Unit Price (€ / pc.)
101.4356 € *
Standard delivery time from the manufacturer is: 1 Week
Safety position switch with separate actuator Metal enclosure, 56 mm Device connection 3x (M20x 1.5) Slow-action contacts 1 NO/2 NC 5 directions of approaches Pull-out force 30 N separate actuators actuator 3SE5000-0AV0. must ordered separately Mechanical safety switches SIRIUS 3SE5 for position monitoring of moving protection equipment, e.g. doors, covers, or protective grilles.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP66/IP67 | |
| Pin number | 3 pole | |
| Connection | screw connection | |
| Latching switching function | 1 Form A (N/O) + 2 Form B (N/C) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
| SVHC free | No |
| RoHS conform | Yes |
