3SE5122-0PH01 | Siemens

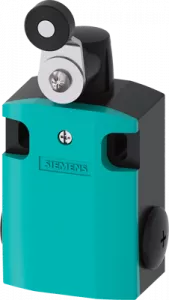

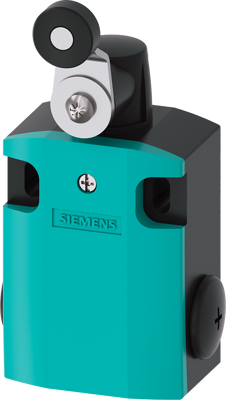

Position sensor, 3 pole, 2 Form A (N/O) + 1 Form B (N/C), adjustable swivel lever, screw connection, IP66/IP67, 3SE5122-0PH01
Order No.: 80P7528
EAN: 4011209856509
MPN:
3SE5122-0PH01
3SE51220PH01
Unit Price (€ / pc.)
72.8518 € *
Standard delivery time from the manufacturer is: 1 Week
Position switch metal enclosur 56 mm wide Device connection 3x (M20x 1.5) 2 NO/1 NC slow-action contacts Rotary actuator right/left adjustable, with metal lever 27 mm long and plastic roller 19 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Latching switching function | 2 Form A (N/O) + 1 Form B (N/C) | |
| Pin number | 3 pole | |
| Actuator | adjustable swivel lever | |
| Connection | screw connection | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
| SVHC free | No |
| RoHS conform | Yes |
