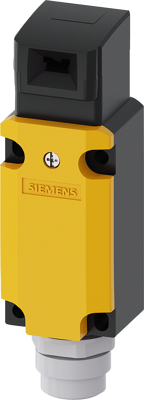

3SE5115-0QV10-1AD1 | Siemens
Safety switch, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), cable connection, IP65, 3SE5115-0QV10-1AD1
Order No.: 80P7466
EAN: 4011209774919
MPN:
3SE5115-0QV10-1AD1
3SE51150QV101AD1
Unit Price (€ / pc.)
174.5849 € *
Standard delivery time from the manufacturer is: 1 Week
Safety position switch with separate actuator Metal enclosure, 40 mm according to EN 50041 1 NO/2 NC slow-action contacts with connector 6+PE according to EN 43651 plastic, max. 250 V, 6 A 5 directions of approaches Pin assignment: Pin 1=21, Pin 2=22 Pin 3=13, Pin 4=14, Pin 5=31 Pin 6=32 and PE connected the matching separate Actuator 3SE5000-0AV0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cable connection | |
| Latching switching function | 1 Form A (N/O) + 2 Form B (N/C) | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
