3SE5115-0KA00-1AD1 | Siemens

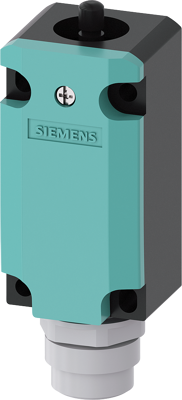

Basic switch, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), dome plunger, cable connection, IP65, 3SE5115-0KA00-1AD1
Order No.: 80P7464
EAN: 4011209774896
MPN:
3SE5115-0KA00-1AD1
3SE51150KA001AD1
Unit Price (€ / pc.)
106.505 € *
Standard delivery time from the manufacturer is: 1 Week
Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 50041 1 NO/2 NC slow-action contacts with connector 6+PE according to EN 43651 plastic, max. 250 V, 6 A without actuator head Pin assignment: Pin 1=21, Pin 2=22 Pin 3=13, Pin 4=14, Pin 5=31 Pin 6=32 and PE connected Mechanical safety switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 2 Form B (N/C) | |
| Pin number | 3 pole | |
| Actuator | dome plunger | |
| Connection | cable connection | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
