6ES7231-5PA30-0XB0 | Siemens

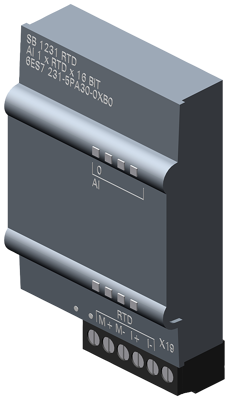

SIMATIC S7-1200 SB 1231, AI 1x16 bit RTD
Unit Price (€ / pc.)
137.3974 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
6ES72315PA300XB0, Siemens
SIMATIC S7-1200, Analog input, SB 1231RTD, 1 AI RTD, Pt100 and Pt1000 SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options If you only have to extend your SIMATIC S7-1200 CPU with a few inputs or outputs, signal boards are a good alternative to signal modules. Signal boards are plugged directly onto the front of the controller (also possible with the CPU 1211C) and are available as digital and analog input, output and hybrid modules. A communications board with an RS 485 interface is also available. Signal boards thus permit subsequent expansion of the configuration without requiring any further space in the control cabinet.
Technical specifications
| Number of analogue inputs | 1 | |
| Number of I/Os | 1 | |
| Version | Analog input module | |
| Width | 38 mm | |
| Suitable for | SIMATIC S7-1200 | |
| Height | 62 mm | |
| Assembly | DIN rail | |
| Depth | 21 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead monoxide, lead titanium zirconium oxide, lead |
