3RU2116-1BB0 | Siemens

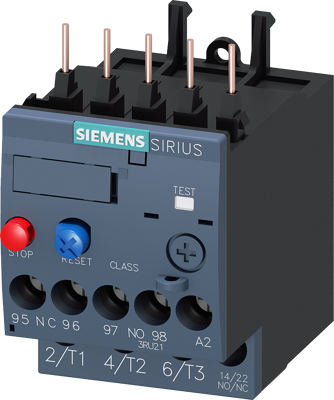

Overload protection relay, 3 pole, 1.4 to 2 A, 2 A, screw connection, 3RU2116-1BB0
Order No.: 27H5205
EAN: 4011209781603
MPN:
3RU2116-1BB0
3RU21161BB0
Unit Price (€ / pc.)
65.4738 € *
Available: 2 pcs.
Overload relay 1.4...2.0 A Thermal For motor protection Size S00, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Release | 1.4 to 2 A | |
| Rated current | 2 A | |
| rated voltage (AC) | 690 V | |
| Actuator | slide switch | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 | |
| Assembly | panel mounting | |
| Connection | screw connection | |
| Version | overload relay |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
