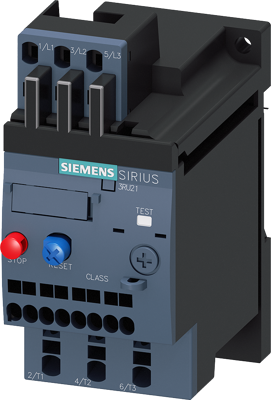

3RU2116-0HC1 | Siemens
Overload relay 0.55-0.80 A motor protection S00, Class 10
Order No.: 27H8856
EAN: 4011209782204
MPN:
3RU2116-0HC1
3RU21160HC1
Unit Price (€ / pc.)
82.3718 € *
Standard delivery time from the manufacturer is: 1 Week
Overload relay 0.55...0.80 A Thermal For motor protection Size S00, Class 10 Stand-alone installation Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure.
Technical specifications
| rated voltage (AC) | 690 V | |
| Actuator | slide switch | |
| Degree of protection (IP) | IP20 | |
| Assembly | panel mounting | |
| Rated current | 0.8 A | |
| Release | 0.55 to 0.8 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Version | overload relay | |
| Connection | spring connection |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
