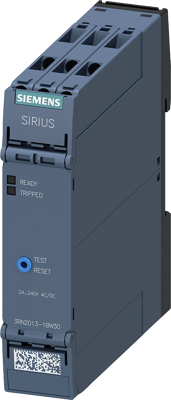

3RN2013-1BW30 | Siemens
Thermistor motor protection relay, standard, screwterminal, 2 CO, 24-240 V A...
Order No.: 27H8683
EAN: 4047621006710
MPN:
3RN2013-1BW30
3RN20131BW30
Unit Price (€ / pc.)
196.6356 € *
Standard delivery time from the manufacturer is: 1 Week
Thermistor motor protection relay Standard evaluation unit 22.5 mm enclosure screw terminal 2 change-over contacts US = 24 V-240 V AC/DC Manual/Auto/Remote reset with ATEX approval 2 LEDs (READY/TRIPPED) Safe galvanic isolation Test/reset button Wire break monitoring Short circuit monitoring non-volatile Thermistor motor protection relay SIRIUS 3RN2 for protecting motors against overheating, including in potentially explosive atmospheres, by means of direct temperature measurement with ATEX approval.
Technical specifications
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail | |
| Network frequency | 50/60 Hz | |
| Version | motor protection relay | |
| Connection | screw connection |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | lead, lead monoxide (lead oxide), Dicyclohexyl phthalate |
| SVHC free | No |
| RoHS conform | Yes |
