3RB3046-1XX1 | Siemens

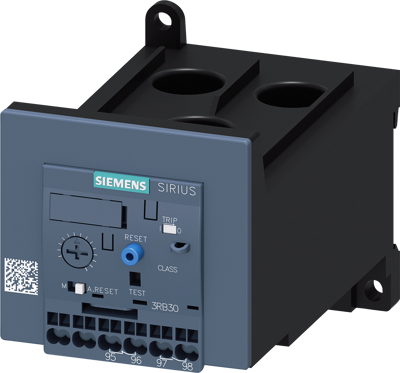

Overload protection relay, 3 pole, 32 to 115 A, 115 A, spring connection, 3RB3046-1XX1
Order No.: 27H8511
EAN: 4047621011981
MPN:
3RB3046-1XX1
3RB30461XX1
Unit Price (€ / pc.)
249.5668 € *
Standard delivery time from the manufacturer is: 1 Week
Overload relay 32...115 A Electronic For motor protection Size S3, Class 10E Stand-alone installation Main circuit: Straight-through transformer Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| rated voltage (AC) | 1000 V | |
| Actuator | slide switch | |
| Degree of protection (IP) | IP20 | |
| Assembly | panel mounting | |
| Rated current | 115 A | |
| Release | 32 to 115 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Version | overload relay | |
| Connection | spring connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| RoHS conform | Yes |
