3RB3036-2WX1 | Siemens

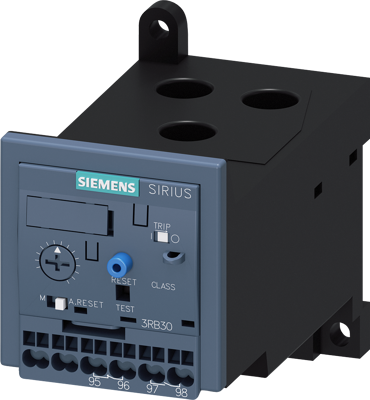

Overload protection relay, 3 pole, 20 to 80 A, 80 A, spring connection, 3RB3036-2WX1

Order No.: 27H8507
EAN: 4011209936508
MPN:
3RB3036-2WX1
3RB30362WX1
3RB3036-2WX1 Siemens Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
238.00 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
238.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
238.00 €
Overload relay 20...80 A Electronic For motor protection Size S2, Class 20E Stand-alone installation Main circuit: Straight-through transformer Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
rated voltage (AC) 690 V
Actuator slide switch
Degree of protection (IP) IP20
Assembly panel mounting
Rated current 80 A
Release 20 to 80 A
Network frequency 50/60 Hz
Pin number 3 pole
Version overload relay
Connection spring connection
Logistics
Country of origin CZ
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead, lead monoxide (lead oxide)
SVHC free No
RoHS conform Yes
