3RB3026-2VE0 | Siemens

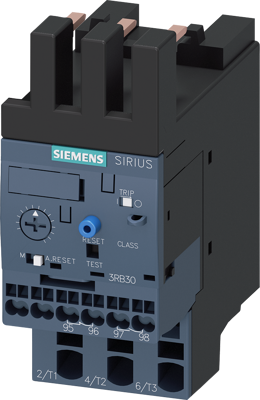

Overload protection relay, 3 pole, 10 to 40 A, 40 A, spring connection, 3RB3026-2VE0
Order No.: 27H2687
EAN: 4011209749450
MPN:
3RB3026-2VE0
3RB30262VE0
Unit Price (€ / pc.)
163.0895 € *
Standard delivery time from the manufacturer is: 1 Week
Overload relay 10...40 A Electronic For motor protection Size S0, Class 20 Contactor mounting Main circuit: Spring-type terminal Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| rated voltage (AC) | 690 V | |
| Actuator | slide switch | |
| Degree of protection (IP) | IP20 | |
| Assembly | panel mounting | |
| Rated current | 40 A | |
| Release | 10 to 40 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Version | overload relay | |
| Connection | spring connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| RoHS conform | Yes |
