3RB2153-4FX2 | Siemens

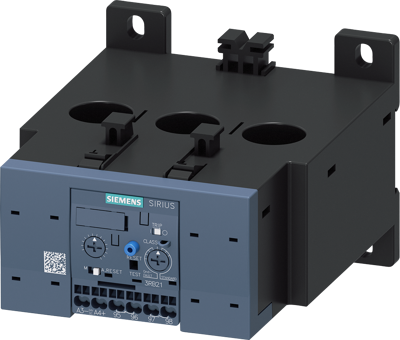

Overload protection relay, 3 pole, 50 to 200 A, 200 A, spring connection, 3RB2153-4FX2
Order No.: 27H8489
EAN: 4011209638372
MPN:
3RB2153-4FX2
3RB21534FX2
Unit Price (€ / pc.)
359.3562 € *
Standard delivery time from the manufacturer is: 1 Week
Overload relay 50...200 A for motor protection Size S6, CLASS 5...30E Contactor mounting/stand-alone installation Main circuit: straight-through transformer Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset Internal ground fault detection solid-state overload relay SIRIUS 3RB2 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| rated voltage (AC) | 1000 V | |
| Actuator | slide switch | |
| Degree of protection (IP) | IP00/IP20 | |
| Assembly | panel mounting | |
| Rated current | 200 A | |
| Release | 50 to 200 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Version | overload relay | |
| Connection | spring connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| RoHS conform | Yes |
