3RB2066-1MF2 | Siemens

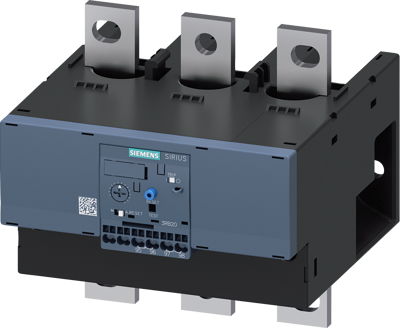

Overload protection relay, 3 pole, 160 to 630 A, 630 A, spring connection, 3RB2066-1MF2

Order No.: 27H8481
EAN: 4011209638471
MPN:
3RB2066-1MF2
3RB20661MF2
3RB2066-1MF2 Siemens Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
485.758 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
485.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
485.758 €
Overload relay 160...630 A for motor protection Size S10/S12, Class 10E Contactor mounting/stand-alone installation Main circuit: busbar connection Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB2 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
rated voltage (AC) 1000 V
Actuator slide switch
Degree of protection (IP) IP00/IP20
Assembly panel mounting
Rated current 630 A
Release 160 to 630 A
Network frequency 50/60 Hz
Pin number 3 pole
Version overload relay
Connection spring connection
Logistics
Country of origin DE
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead, lead monoxide (lead oxide)
SVHC free No
RoHS conform Yes
