3UG4841-2CA40 | Siemens
Current relay, digital, COS-PHI and current monitoring. for IO -Link. 90-690 V, 2 Form C (NO/NC), 24 V (DC), 5 A, 3UG4841-2CA40
Order No.: 27H9029
EAN: 4011209895881
MPN:
3UG4841-2CA40
3UG48412CA40
Unit Price (€ / pc.)
310.6971 € *
Standard delivery time from the manufacturer is: 1 Week

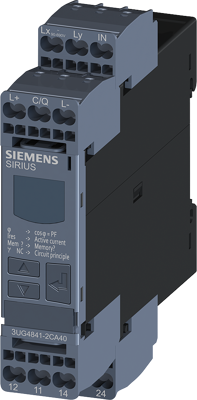

Digital monitoring relay cos phi and current monitoring for IO-Link 90...690 V AC, 0.2...10 A overshoot and undershoot ON-delay time Tripping delay time Hysteresis 0.1 to 3.0 A 2 change-over contacts, spring-type connection system Cos phi monitoring relay with digital setting SIRIUS 3UG4 for monitoring the power factor and active current for overshooting, e.g. in the event of soiled filter systems, or for undershooting, e.g. in the event of a torn V-belt or pump idling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Connection | spring-clamp connection | |
| switching current | 5 A | |
| Version | digital, COS-PHI and current monitoring. for IO -Link. 90-690 V | |
| Contact type | 2 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | lead, lead monoxide (lead oxide), Dicyclohexyl phthalate |
| Date of RoHS guidelines | 3/31/15 |
